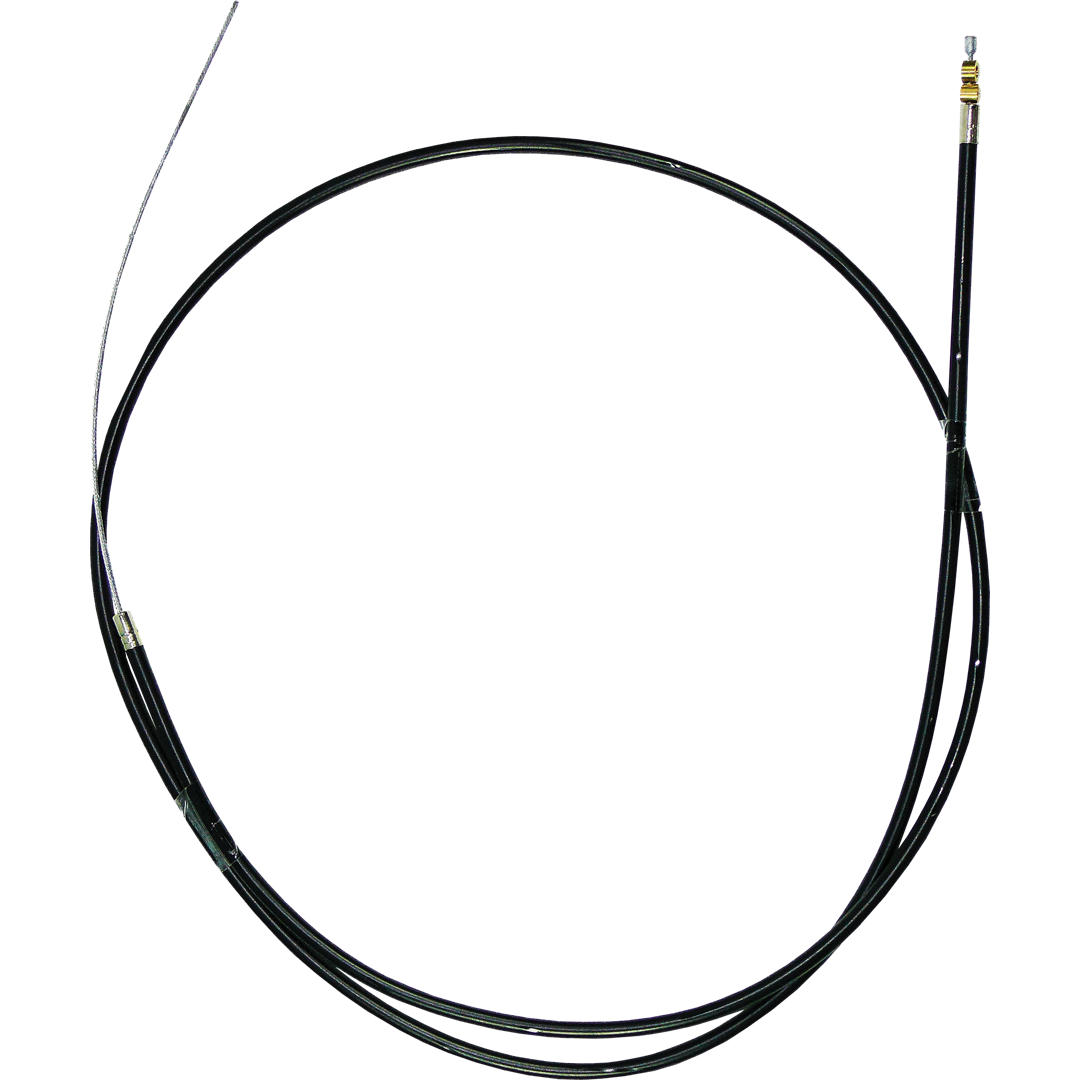

UC2 - MCS UNIVERSAL THROTTLE CABLE

MCS universal cut-to-length throttle cable designed for custom applications or as a cost-effective replacement where a direct-fit cable is unavailable.

The outer cable is supplied with one fitted ferrule and one loose ferrule, allowing it to be cut to the required length before the loose ferrule is refitted and crimped. The inner cable includes a pre-soldered cylinder-style nipple for carburettors with internal slide operation, together with an additional nipple for throttle bodies or carburettors using an external cam-style mechanism.

Some cutting, fitting and soldering are required.

Features

  • Universal cut-to-length throttle cable

  • Suitable for custom and replacement applications

  • Inner and outer cables can be shortened to the required length

  • One outer-cable ferrule fitted and one supplied loose

  • Pre-soldered cylinder nipple for internal-slide carburettors

  • Additional nipple for external cam-style throttle operation

  • Cost-effective alternative to a model-specific throttle cable

Specifications

  • Product type: Universal throttle cable

  • Brand: MCS

  • Inner cable length: 1420 mm

  • Outer cable length: 1220 mm

  • Inner-cable fitted end: Soldered cylinder-style nipple

  • Outer-cable ends: One fitted ferrule and one loose ferrule

  • Additional fitting: Throttle nipple for external cam-style applications

  • Final nipple attachment: Soldered after cutting

  • Installation: Cut and assemble to the required length

Installation Note

Measure the required inner and outer cable lengths carefully before cutting. Refit and securely crimp the loose outer-cable ferrule, then solder the appropriate nipple to the inner cable. Confirm smooth throttle operation and automatic return to the closed position before riding.

SKU UC2
Barcode # 9334437024089
Unit Of Measure EACH
