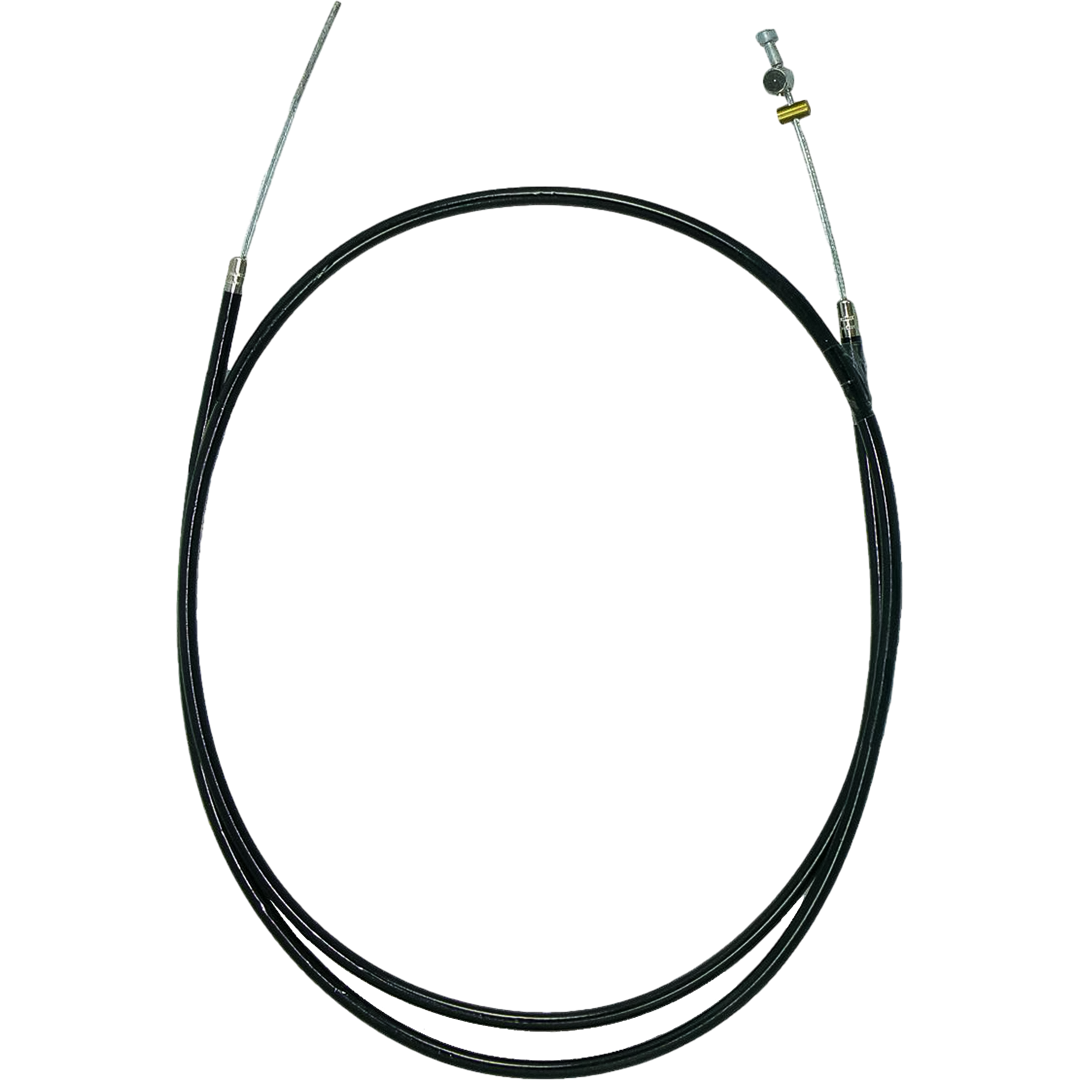

UC1 - MCS UNIVERSAL CLUTCH CABLE

MCS universal cut-to-length clutch cable designed for custom applications or as a cost-effective replacement where a direct-fit cable is unavailable.

The inner and outer cables can be shortened to suit the required installation. One end of the inner cable is supplied with a fitted bulb or cylinder-style nipple, while the opposite end is unfinished so it can be cut and fitted to the required length.

Some cutting, fitting and mechanical assembly are required.

Features

  • Universal cut-to-length design

  • Suitable for custom and replacement applications

  • Inner and outer cables can be shortened as required

  • One inner-cable end supplied with a fitted nipple

  • Unfinished end allows the cable to be adapted to the application

  • Screw-secured cylinder nipple can also be silver soldered for a permanent installation

  • Cost-effective alternative to a model-specific clutch cable

Specifications

  • Product type: Universal clutch cable

  • Brand: MCS

  • Inner cable length: 1550 mm

  • Outer cable length: 1370 mm

  • Fitted end: Bulb or cylinder-style nipple

  • Opposite end: Unfinished

  • Final nipple attachment: Screw secured or silver soldered

  • Installation: Cut and assemble to the required length

Installation Note

Measure the required inner and outer cable lengths carefully before cutting. Ensure the final nipple and all outer-cable fittings are securely installed before operating the motorcycle.

SKU UC1
Barcode # 9334437024058
Shipping Weight 0.3000kg
Shipping Width 0.300m
Shipping Height 0.300m
Shipping Length 0.100m
Unit Of Measure EACH
