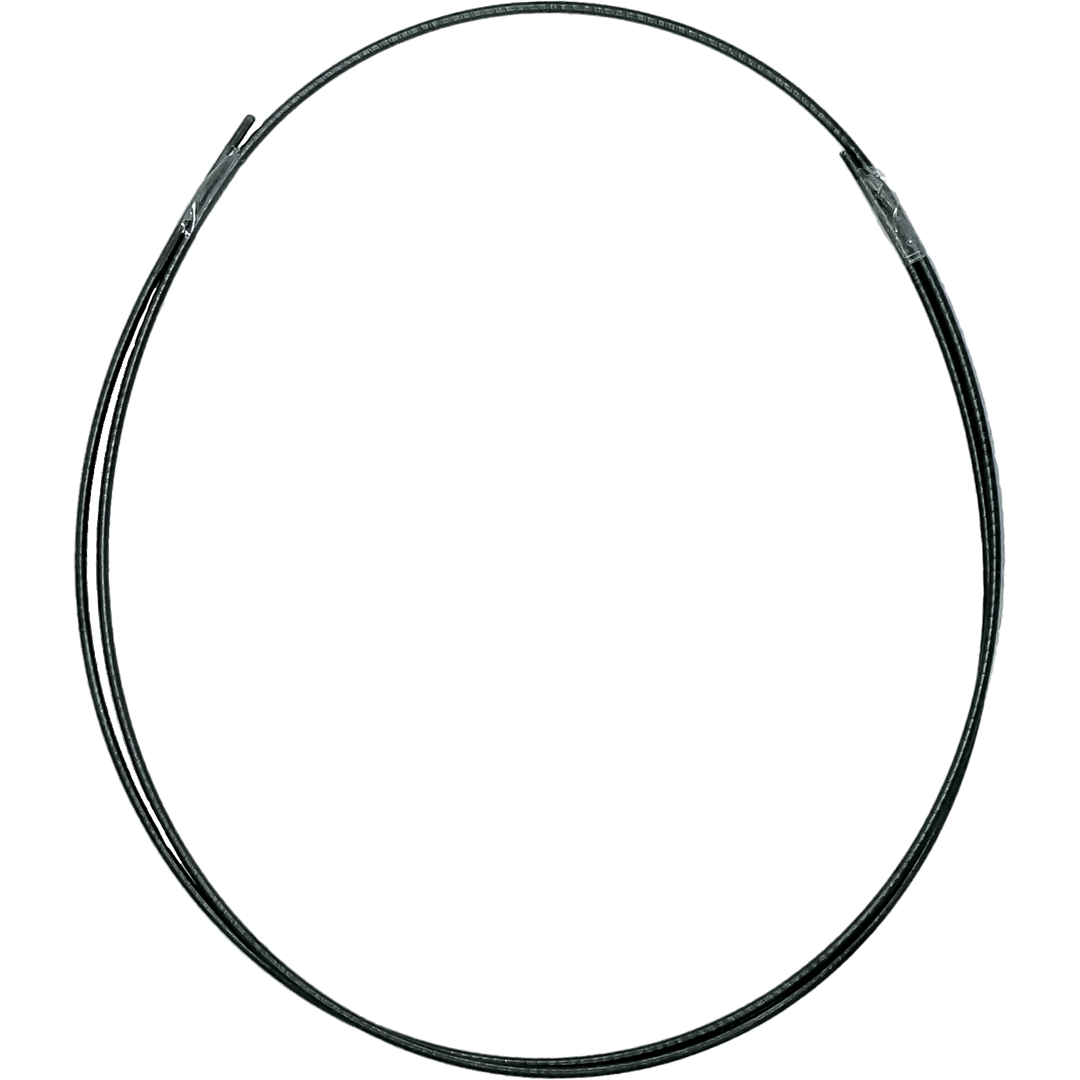

UC10 - UNIVERSAL SPEEDOMETER CABLE KIT – 1420 MM

Universal inner speedometer cable kit designed for custom applications or as a cost-effective replacement where a direct-fit cable is unavailable.

The cable is supplied with one pre-formed square-drive end and one unfinished end. The unfinished end can be cut to the required length and fitted with the appropriate supplied drive fitting to suit the application. It is commonly configured with the pre-formed square end connected to the speedometer or tachometer and the selected fitting installed at the wheel-drive end.

Some cutting, fitting and mechanical assembly are required.

Features

  • Universal cut-to-length inner cable

  • Suitable for speedometer and tachometer applications

  • One pre-formed square-drive end

  • One unfinished end for custom sizing

  • Includes multiple drive fittings for different applications

  • Supplied crimping plate secures the selected fitting to the cable

  • Cost-effective alternative to a model-specific cable

Specifications

  • Product type: Universal inner speedometer cable kit

  • Cable length: 1420 mm

  • Pre-formed end: 2.9 mm square drive

  • Opposite end: Unfinished

Supplied Fittings

  • Square drive fitting:

    • Overall length: 26.5 mm

    • Square-drive size: 2.25 mm

    • Square section length: 20 mm

  • Circular drive fitting No. 1:

    • Length: 23 mm

    • Diameter: 4 mm

    • Slot width: 2 mm

  • Circular drive fitting No. 2:

    • Length: 15 mm

    • Diameter: 6.5 mm

    • Slot width: 2 mm

  • Crimping plate:

    • Length: 27 mm

    • Width: 12 mm

    • Thickness: 2 mm

Installation Note

Measure and cut the cable to the required length. Select the appropriate drive fitting and place it into the slot in the supplied crimping plate. Secure the plate in a vice and compress it to crimp the fitting firmly onto the cable. The crimping plate is discarded after installation.

SKU UC10
Barcode # 9334437024065
Shipping Weight 0.3000kg
Shipping Width 0.300m
Shipping Height 0.300m
Shipping Length 0.100m
Unit Of Measure EACH
