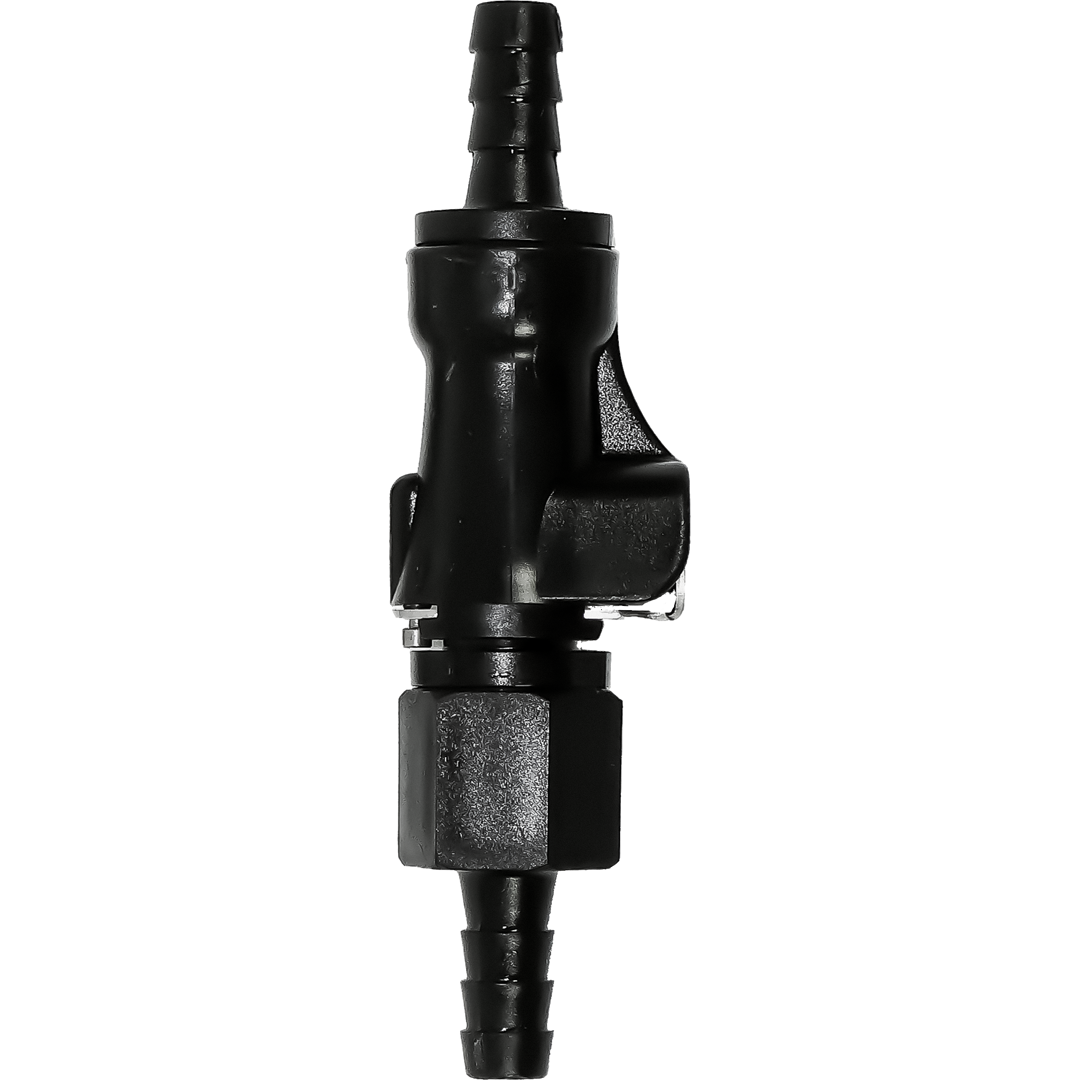

QD2 - 1/4" QUICK-DISCONNECT FUEL LINE FITTING

The QD2 Quick-Disconnect Fuel Line Fitting provides a fast and convenient way to connect and disconnect compatible 1/4" fuel hose when removing a fuel tank or carrying out fuel-system maintenance.

Manufactured from tough, fuel-resistant plastic, it features a metal press-to-disconnect lever and a positive O-ring seal for a secure, leak-resistant connection. Fuel flow is automatically blocked when the fitting is disconnected, helping minimise fuel loss and mess during servicing.

Features

  • Quick and convenient fuel-line connection and disconnection

  • Suitable for compatible 1/4" fuel hose

  • Automatically blocks fuel flow when disconnected

  • Positive O-ring seal helps prevent fuel leaks

  • Tough, fuel-resistant plastic construction

  • Metal press-to-disconnect lever

  • Single-sided latch secured by a metal retaining lug

  • 16 mm-long fuel-line connection at each end

  • Ideal for fuel-tank removal and fuel-system servicing

Specifications

  • Product type: Quick-disconnect fuel-line fitting

  • Fuel-line size: 1/4"

  • Metric equivalent: 6 mm

  • Overall length: 85 mm

  • Connection length: 16 mm at each end

  • Seal type: O-ring

  • Disconnect mechanism: Metal press lever

  • Installation type: Inline

Suitable Applications

  • Motocross and off-road motorcycles

  • Older gravity-fed motorcycle fuel systems

  • Fuel-tank removal and draining

  • Workshop servicing and maintenance

Limitations

  • Not suitable for motorcycles equipped with fuel pumps

  • Not compatible with methanol fuel

SKU QD2
Barcode # 9334437046104
Unit Of Measure EACH
