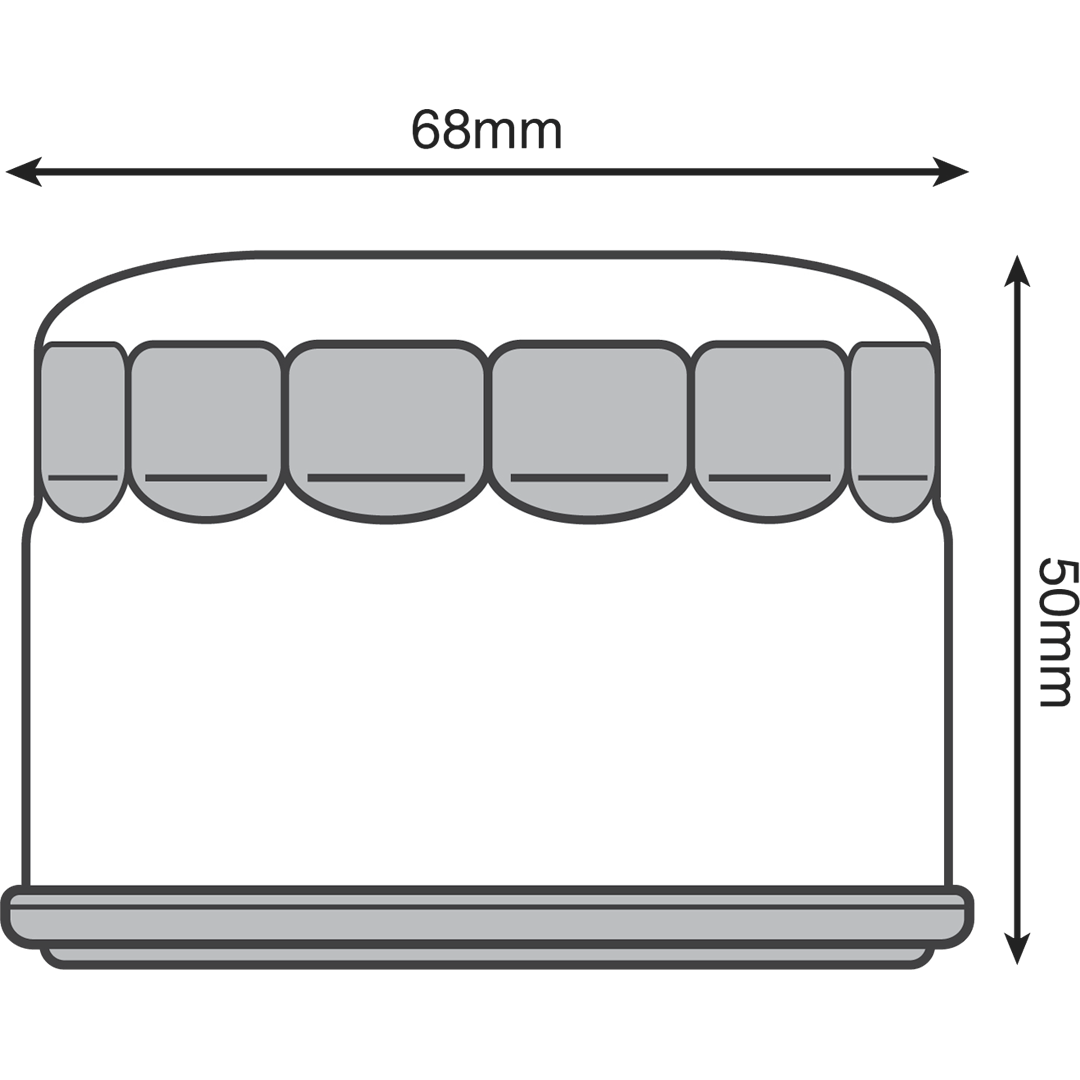

OF40 - KYMCO/FZS/YFM OIL FILTER (147)

Premium replacement oil filter manufactured to meet or exceed OEM filtration standards and performance levels.

MCS Oil Filters are suitable for road motorcycles, competition off-road and enduro models, scooters, ATVs and UTVs.

Manufactured in Taiwan using premium components and high-quality filter media sourced from Finland, the USA and Japan. Each oil filter undergoes a rigorous 16-stage quality-control process, including raw-material inspections and individual filter testing. Manufacturing processes are also independently audited and verified by TÜV SÜD.

Features

• Meets or exceeds OEM filtration and performance standards

• Premium-quality filter media

• Designed for reliable oil flow and filtration

• 16-stage quality-control process

• Individually inspected and tested

• Suitable for selected motorcycle, scooter and ATV applications

• Manufactured in Taiwan

Cross-Reference

• HF147

Replaces OEM Part Numbers

• Kymco 1541A-LBA2-E00

• Yamaha 5DM-13440-00

• Yamaha B16-E3440-00

Suitable Vehicle Fitment

Kymco ATVs

• 500 MXU/XL – 06–15

• 500 UXV 4x4 – 08–15

• 550 MXU i.e. – 11–12

• 700 MXU i.e. – 13

Kymco Scooters

• 500 Xciting – 05–09

• 500 Xciting RI – 10–16

• 700i MyRoad – 11–16

Yamaha ATVs

• YFM660 R-N/P/R/S/T Raptor – 01–05

• YFM660 RLE-R/S Raptor Black Limited Edition – 03–04

• YFM700 DH-G Grizzly Hunter – 16

• YFM700 P-G Grizzly 4WD FI EPS – 16

• YFM700 PH-G Grizzly Hunter EPS – 16

• YFM700 GPA-J Grizzly EPS – 18

• YFM700 GPH-J Grizzly EPS Hunter – 18

• YFM700 GPL-H/J Grizzly EPS 4WD LE – 17–18

• YFM700 GPS-H/J Grizzly EPS 4WD SE – 17–18

• YFM700 GPX-J Grizzly EPS – 18

• YFM700 KDH-G/H/J Kodiak 700 4WD Hunter – 16–18

• YFM700 KDX-J Kodiak 700 – 18

• YFM700 KPA-H/J Kodiak 700 4WD EPS Hunter – 17–18

• YFM700 KPH-G/H/J Kodiak 700 4WD EPS Hunter – 16–18

• YFM700 KPX-G/H/J Kodiak 700 4WD EPS – 16–18

• YFM700 KPS-G/H/J Kodiak 700 4WD EPS SE – 16–18

Yamaha Motorcycles

• FZS600 Fazer, 5DM/5RT – 98–03

• FZS600 SP Fazer, 5DM – 00–01

• XVS1300 A Midnight Star, 11C – 07–10

• XVS1300 A-W/X/Y V-Star – USA market, 07–09

• XVS1300 CT-W/X/Y V-Star Tourer – USA market, 07–09

Supplied Yamaha Scooter References — Verification Required

The following applications were included in the supplied data but are specifically identified as air-filter or V-belt-filter positions, not engine oil-filter applications:

• XP500 TMAX, first air filter, 5GJ/5VU/15B – 01–07

• XP500 TMAX, left-hand-side air filter, 5GJ/5VU/15B – 01–07

• XP500 TMAX, right-hand-side V-belt filter, 5GJ/5VU/15B – 01–07

• XP500 TMAX, first air filter, 4B5 – 08–11

• XP500 TMAX, left-hand-side air filter, 4B5 – 08–11

• XP500 TMAX, right-hand-side V-belt filter, 4B5 – 08–11

• XP500 TMAX Tech Max ABS, first air filter – 11

• XP500 SP TMAX White Max, first air filter, 4B5E/1LD – 10–11

• XP500 SP TMAX White Max, left-hand-side air filter, 4B5E/1LD – 10–11

• XP500 SP TMAX White Max, right-hand-side V-belt filter, 4B5E/1LD – 10–11

• XP530 TMAX/Black Max/Iron Max, first air filter, 59C/2PW – 12–16

• XP530 TMAX/Black Max/Iron Max, left-hand-side air filter – 12–16

• XP530 TMAX/Black Max/Iron Max, right-hand-side V-belt filter – 12–16

These Yamaha scooter references should not be advertised as confirmed OF40 engine oil-filter fitments without further verification.
