HM3 – Hour Meter, Universal

Universal hour meter designed to track engine run time on any motorcycle or spark-ignition engine. Ideal for maintenance scheduling, service tracking, and performance monitoring.

Quick Facts:

• Weight: 0.04 kg

• Compatibility: All motorcycles and engines with a spark plug

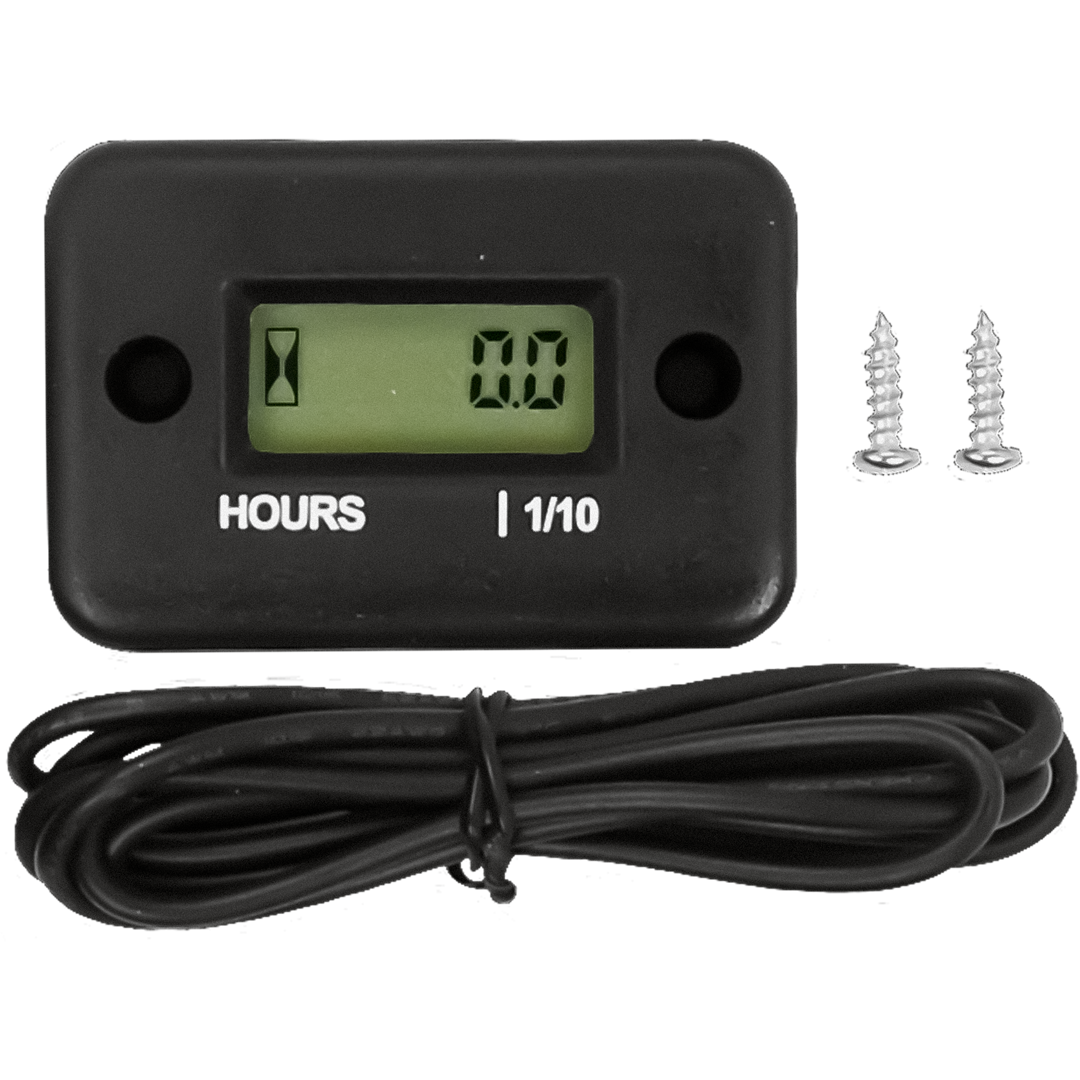

• Hardware Included: Hour meter, pick-up wire, two screws

Installation Instructions:

1. Wrap the Pick-Up Wire:

   • Wrap the included pick-up wire around the spark plug wire 5 times, starting about 4 cm from the spark plug boot.

   • Secure the wrap with a zip tie.

2. Test Signal:

   • Insert the pick-up wire into the rear of the meter.

   • Start the engine; the meter should detect the ignition signal.

   • If successful, the timer icon on the LCD will flash. Wait at least 6 minutes for the timer to register 1/10 of an hour.

   • If the meter does not pick up the signal, slide the pick-up wrap closer to the spark plug boot.

3. Final Installation:

   • Run the pick-up wire along a throttle cable, keeping it away from engine heat and moving parts.

   • Leave about 8 cm slack for spark plug removal.

   • Mount the meter in a convenient location on the frame.

Securing Methods:

• Screws: Drill a 2.5 mm hole and secure using the provided screws.

• Zip-Tie/Double-Sided Tape: Attach using double-sided tape and secure with zip ties for non-drilled mounting.

Features & Benefits:

• Tracks engine run time accurately

• Compatible with virtually any spark-ignition engine

• Compact and lightweight design

• Ideal for maintenance scheduling and service intervals

A versatile and easy-to-install solution to monitor engine hours and keep your motorcycle or equipment running at its best.
