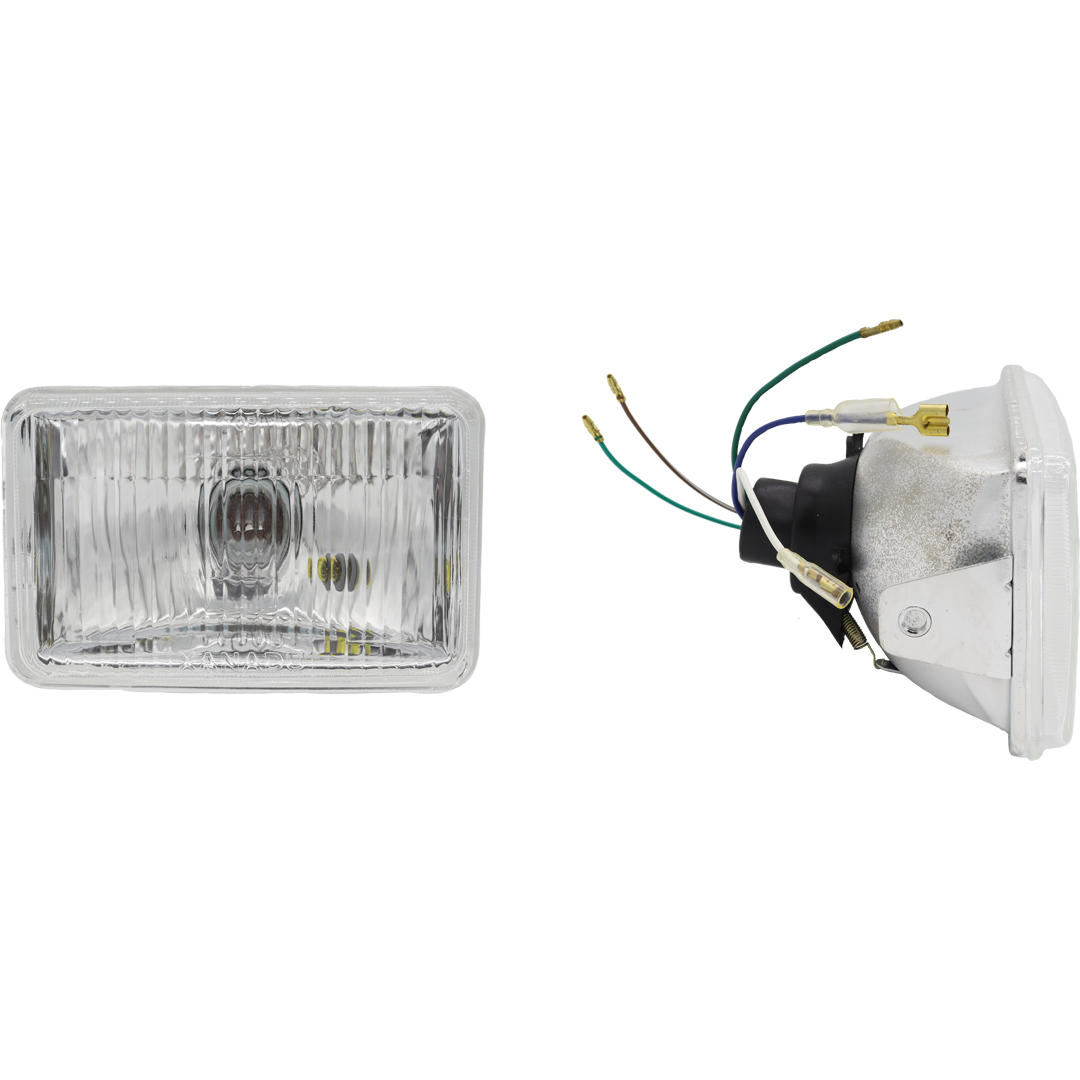

HL28 – XR Headlight (Late 1996–2002)

Quality replacement headlight assembly to suit late-model XR applications (1996–2002). Designed as a direct-fit style unit, the HL28 is ideal for repairs, rebuilds or freshening up tired plastics and lighting on trail bikes.

Supplied complete with headlight bulb and park bulb, this unit is fitted with a standard Honda Euro-base 35/35W globe, making it ready to install and wire straight into compatible XR looms.

Specifications:

  • Suits XR late models 1996–2002

  • Fitted with Honda Euro-base 35/35W bulb

  • Includes park bulb

  • Headlight size: 165mm (W) x 105mm (D)

  • Lens size: 160mm x 100mm

Wiring Details:

Headlight bulb plug:

  • 2-way female bullet connector – Blue wire

  • Single white female bullet connector

  • Single green male bullet connector

Parker light wiring:

  • One green wire – single male bullet connector

  • One brown/white wire – single male bullet connector

Built for dependable trail use, the HL28 offers a cost-effective replacement solution with correct-style wiring and fitment for late XR models.

HL28 – Reliable XR lighting, ready to plug in and ride.

SKU HL28
Barcode # 9334437008553
Shipping Weight 0.3000kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.200m
Unit Of Measure EACH
