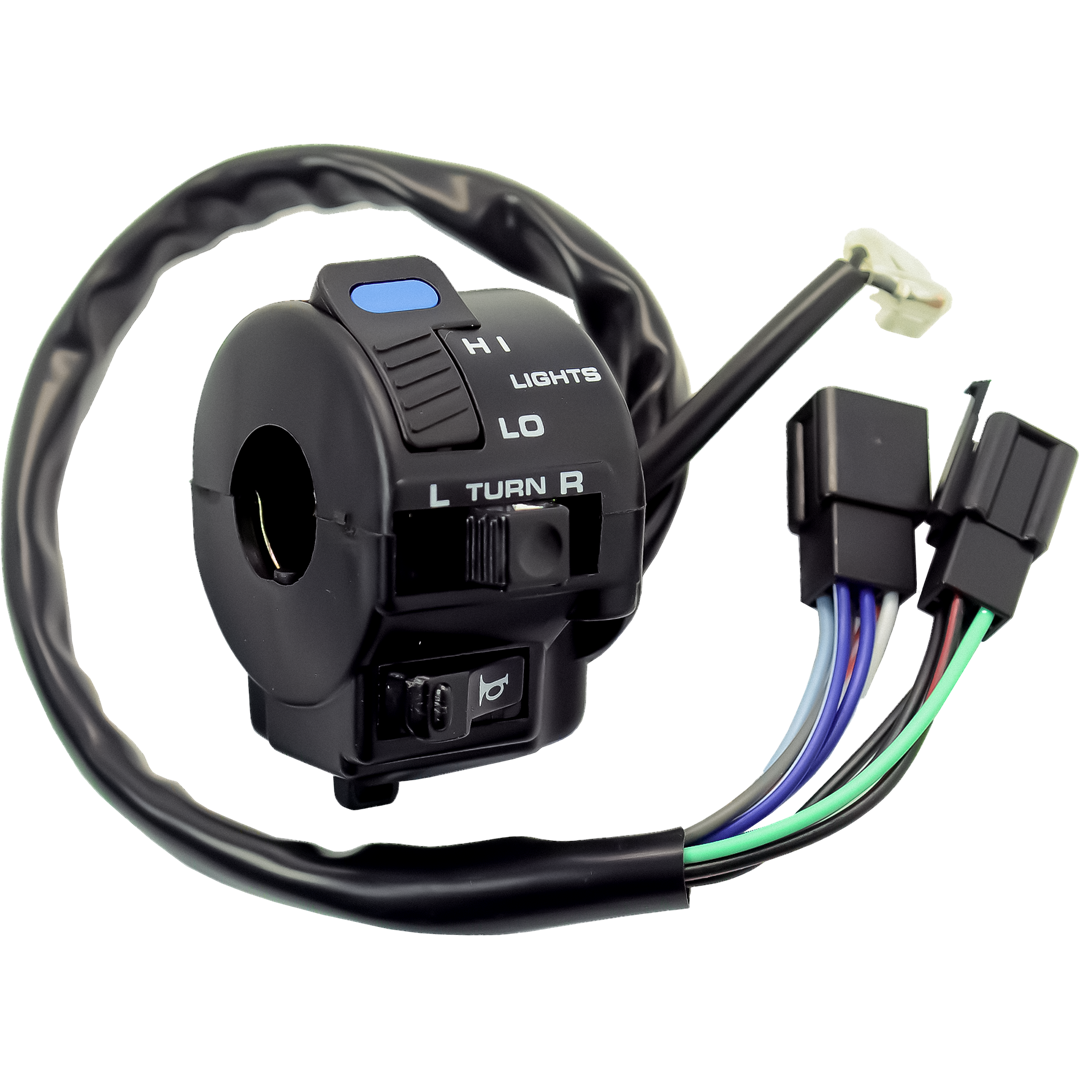

CS11 – Combination Switch Assembly – Honda XR (Late Model)

Aftermarket left-hand combination switch designed as a generic replacement for late-model Honda XR motorcycles. This switch block is a functional copy of Honda part #35200-KCZ-570, covering all standard handlebar functions.


Features & Functions:

  • High / Low beam headlight control

  • Turn signal indicators

  • Horn button

  • Metal sub-frame with durable plastic outer body

  • Fits standard 7/8" (22mm) handlebars

  • Wiring configuration:

    • Black/Red: Power to horn

    • Green: Horn earth

    • Grey: Power to flasher relay

    • Orange/White: Flasher L/H output

    • Light Blue: Flasher R/H output

    • Blue/White: Power to headlight

    • Dark Blue: High beam

    • White: Low beam

    • Black: Clutch switch


Fitment Notes:

  • Generic replacement; minor rewiring may be required

  • Not suitable for 1" (25.6mm) handlebars

  • Designed for late-model Honda XR motorcycles

  • Provides full functionality of the original switch block


A durable and functional replacement for XR riders needing a reliable left-hand switch assembly with all standard controls.

SKU CS11
Barcode # 9334437061176
Shipping Weight 0.1000kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.150m
Unit Of Measure EACH
